SY50U
GREAT PERFORMANCE, SMALL PACKAGE

INDUSTRY LEADING 5-YEAR WARRANTY

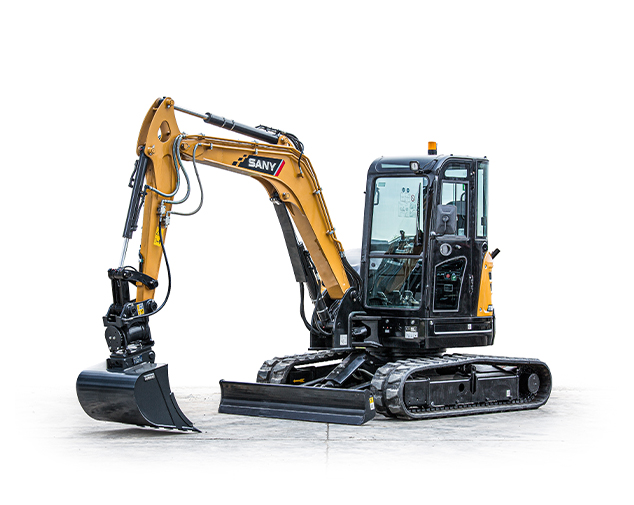

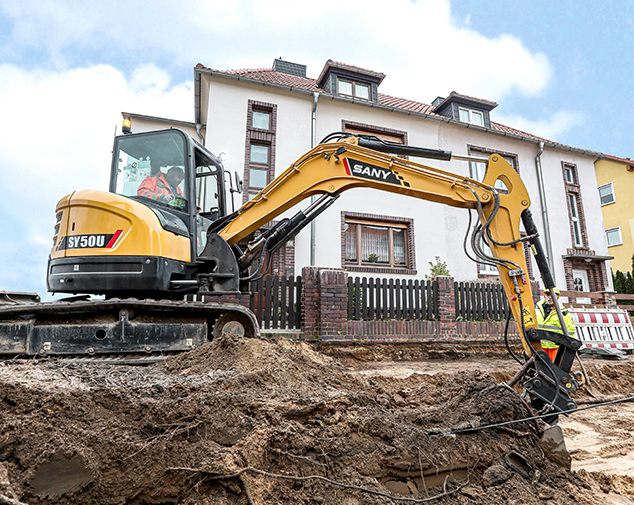

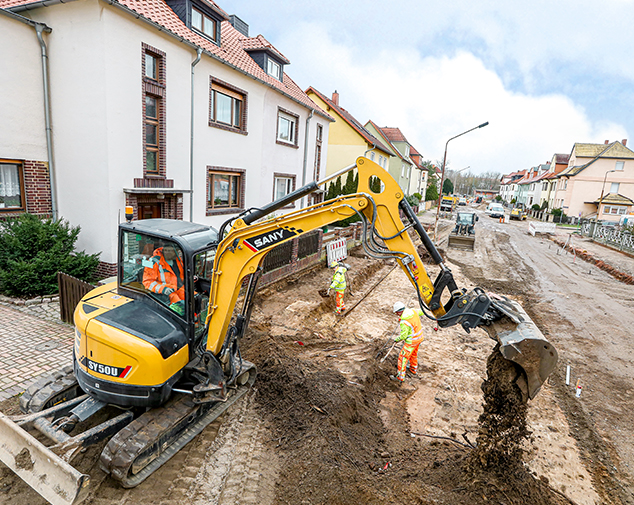

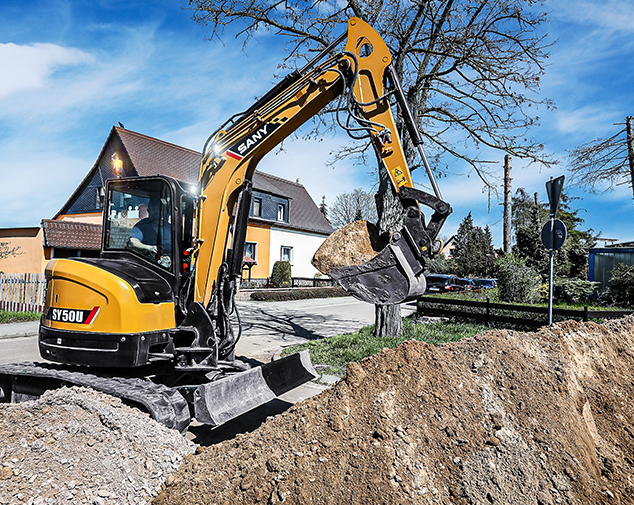

The SY50U zero tail swing excavator can prove its power especially in confined areas It requires little space, so can work and manoeuvre everywhere where conventional machines reach their limits. You can rely on its responsive, precise control and on the fact that this small machine is ranked at the level of significantly larger machines in its class in terms of speed and power.



– Zero tail swing excavator
– Stage V Yanmar engine and powerful load-sensing hydraulic system
– 5 year warranty for complete peace of mind

  • RATED POWER
    29.1 kW / 2,400 rpm
  • OPERATING WEIGHT
    5,100 kg
  • DIG DEPTH
    3,420 mm
Benefits & Features

PERFORMANCE

Ranked at the same level of significantly larger machines in its class in terms of speed and power, the SY50U is a powerful all-rounder and perfectly equipped for a range of applications.



+ Zero tail swing facilitating work in tight spaces

+ Stage V YANMAR engine and efficient, load sensing hydraulics to maximise on fuel economy

+ 100% steel bodywork for maximum protection and reduced cost of ownership

+ Hammer, bi-directional and rotate pipework with proportional controls enabling maximum versatility whatever the application



SAFETY

The safety features of the SANY SY50U ensure the operator and your job site stay safe at all times.



+ ROPS/FOPS certified cab for safe operation

+ Optimal all-round visibility for increased on site safety

+ Battery disconnect switch

+ Travel alarm and rotating warning beacon to increase visibility, attract attention and ensure safety



OPERATOR COMFORT

Despite the compact dimensions, the generously designed cab of the SY50U offers the highest levels of comfort.



+ Responsive and precise controls

+ Ergonomic and comfortable operator’s seat

+ Clear instrumentation and large high resolution colour display

+ Quiet, low vibration engine so noise levels are kept to a minimum

+ Manual air conditioning for improved operator comfort

+ LED work lights for maximum visibility in low light conditions



SERVICE

+ Easy access to all maintenance points

+ Low maintenance requirements and longer service intervals



SECURITY

+ Registered and protected with the CESAR Datatag Scheme (the premier initiative against equipment theft) and CESAR ECV for quick and easy verification of emissions category



WARRANTY

+ 5-year/5000 hour warranty as standard for complete peace of mind (Terms and Conditions)

Specifications
DIMENSIONS
Overall length 5,390 mm
Overall width 1,960 mm
Overall superstructure width 1,760 mm
Overall height above cab 2,630 mm
Rear length 980 mm
Track width 1,560 mm
Undercarriage length 2,510 mm
Undercarriage width (dozer blade) 1,960 mm
Blade height 340 mm
Track link width 400 mm
Min. ground clearance 325 mm
Tail swing radius 980 mm
Distance (centre) between crawler wheel and guide wheel 1,970 mm
Boom length 2,700 mm
Bucket arm length 1,500 mm
Bucket capacity 0.152 m³

WEIGHT
Operating weight 5,100 kg

WORKING RANGE
Max. horizontal reach on the ground 5,880 mm
Max. excavation depth 3,420 mm
Max. vertical reach 5,450 mm
Max. dumping height 3,795 mm
Min. slewing radius 2,520 mm
Max. excavation depth, vertical wall 2,460 mm
Working machine height at min. slewing radius 3805 mm

ENGINE
Model YANMAR 4TNV88-PSY
Rated power 29.1 kW
Max. torque 144.9 Nm
Displacement 2.19 l

HYDRAULIC SYSTEM
Main pumps 1 Adjustable axial piston pump
Maximum oil flow 138.6 l/min
Travel drive 2 Adjustable axial piston pumps
Slewing gear 1 Adjustable axial piston pumps

RELIEF VALVE SETTINGS
Boom circuit 245 bar
Slewing circuit 191 bar
Drive circuit 245 bar
Pilot control circuit 35 bar

PERFORMANCE
Swing speed 10 rpm
Swing torque 10.2 kNm
Max. ground speeds fast 4.0 km/h slow 2,7 km/h
Max. traction force 40.7 kN
Climbing ability 30°
ISO bucket breakaway force 32.5 kN
ISO arm tear-out force 22.9 kN

SERVICE REFILL CAPACITIES
Fuel tank 78 l
Engine coolant 4,2 l
Engine oil 7.4 l
Travel drive (per side) 0.9 l
Hydraulic system 80 l
Hydraulic oil tank 52 l
