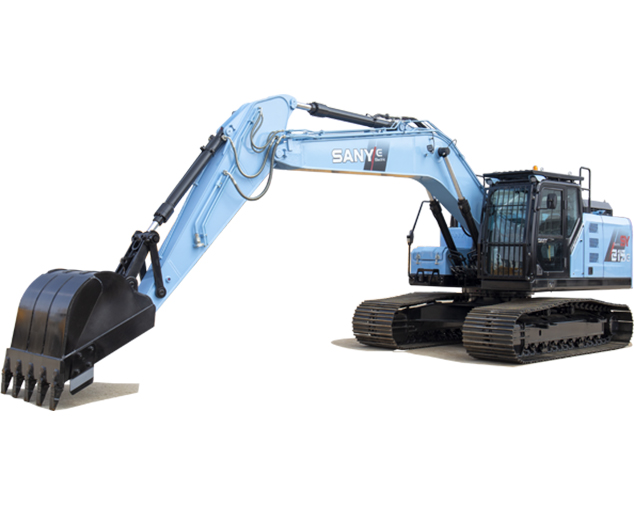

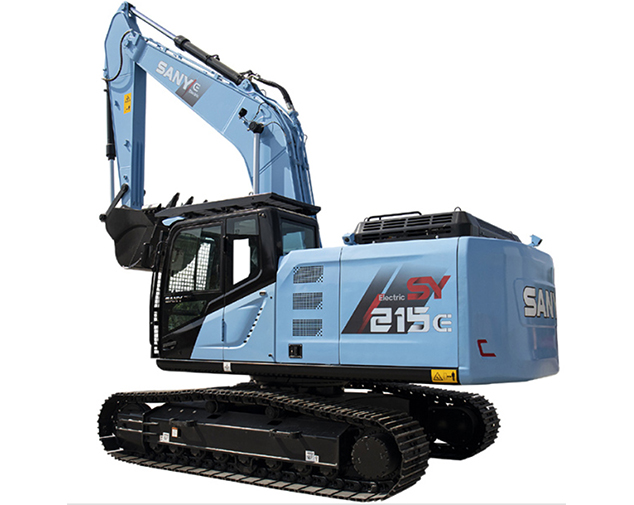

Electric SY215E

INDUSTRY LEADING 5-YEAR WARRANTY

The 23-tonne SY215E electric excavator allows you to work with zero emissions, low noise levels and a lower total cost of ownership thanks to its reduced maintenance costs. Powered by a state-of-the-art lithium iron phosphate (cobalt free) battery, this versatile machine has been designed with a fully flexible, automotive standard (CCS2) charging solution and can achieve a full days work (6 – 8 hrs) off a single charge.



– Emission-free performance
– Equipped with a lithium iron phosphate (cobalt free) battery
– 5 year warranty for complete peace of mind



  • RATED POWER
    150 kW / 1,800 rpm
  • OPERATING WEIGHT
    23,200 kg
  • DIG DEPTH
    6,255 mm
Benefits & Features

PERFORMANCE

Equipped with a state-of-the-art battery, efficient load-sensing hydraulic system and automotive grade battery with CCS2 DC charging options the SY215E guarantees total flexibility on site.



+ Fully electric with zero emissions to allow for cleaner working and increases onsite flexibility to include indoor working, out of hours projects, urban and emissions sensitive areas

+ Fitted with a Lithium Iron Phosphate (cobalt free) CATL battery, therefore less toxic and more environmentally friendly

+ Best in class Kawasaki pump, valve block and slew motors ensures maximum efficiency and performance

+ Fully flexible, automotive standard CCS2 DC charging as standard (DC fast charge 1.5 hours)

+ Work for longer with up to 6-8 hours run time off a single charge (depending on application and temperature conditions)

+ 100% steel bodywork for maximum protection and reduced cost of ownership

+ Twin line Aux, bi-directional pipework and quick hitch pipelines as standard for maximum versatility of attachments



SAFETY

The SY215E is equipped with a number of safety features, all included as standard.



+ ROPS/FOPS certified cab for safe operation

+ Optimal visibility for increased on site safety

+ Battery disconnect switch and emergency stop button

+ Travel alarm and green beacon to increase visibility, attract attention and ensure safety



OPERATOR COMFORT

Operators can look forward to maximum comfort and easy operation with the SY215E.



+ Reduced noise levels for the operator and outside the machine to improve driver comfort and aid clearer communication on site

+ Simplified charging solution for the operator with one single charge point and less cabling/equipment to carry

+ Responsive and precise controls

+ Ergonomic and comfortable operator’s seat with adjustable armrests

+ Clear instrumentation and large high resolution 10″ colour display

+ Keyless push start/stop function with password protection

+ LED work lights positioned all-round the machine for maximum visibility in low light conditions



SERVICE

+ Fully electric drive with a reduced number of serviceable machine parts, reduces maintenance downtime and servicing costs

+ The maintenance free lithium iron phosphate battery equipped with BMS (battery management system) and thermal management ensures battery life and quality during operation and charging



SECURITY

+ Registered and protected with the CESAR Datatag Scheme (the premier initiative against equipment theft) and CESAR ECV for quick and easy verification of emissions category

+ EVI telematics with built in tracker for complete peace of mind



WARRANTY

+ 5-year/5000 hour warranty as standard (Terms and Conditions apply)

Specifications



BATTERY
Battery type Lithium iron phosphate battery (cobalt free)
Rated voltage 618v
Rated battery capacity 422 kWh
Rated capacity 684 Ah
Run time 6-8 hrs
Charge time 1.5h

DIMENSIONS
Transport length 9,910 mm
Transport width 2,980 mm
Transport height 3,440 mm
Top width 2,875 mm
Blade height 270 mm
Track gauge 2,380 mm
Tail swing radius 3,125 mm
Track length 4,250 mm
Track ground length 3,445 mm
Minimum ground clearance 440 mm
Bucket capacity 1.1m3

WORKING RANGE
Maximum digging height 9,600 mm
Maximum dumping height 6,730 mm
Maximum digging depth 6,255 mm
Maximum digging reach 10,280 mm
Minimum swing radius 3,730 mm

WEIGHT
Operating weight 23,200 kg

PERFORMANCE
Power 150 Kw /1,800 rpm
Peak Torque 1500 Nm
Travelling speed (High-Low) 5.4/3.3 km/h
Swing speed 12.5 rpm
Gradeability 70%
Bucket digging force 138 kN
Arm digging force 103 kN
