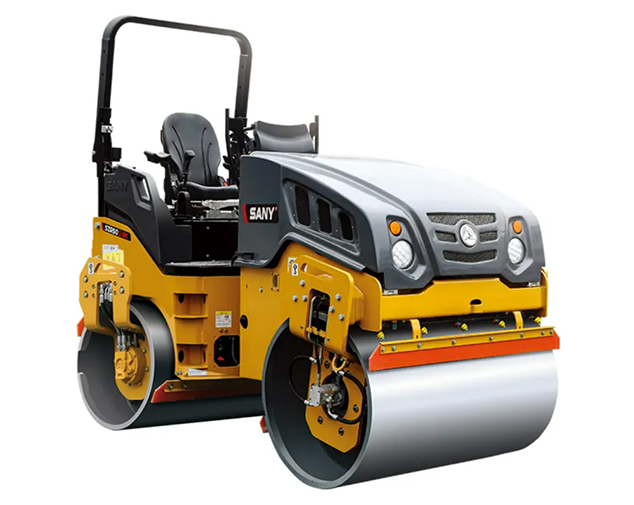

STR50C-8K
CONVINCING PERFORMANCE PACKAGE

INDUSTRY LEADING 5-YEAR WARRANTY

The SANY STR50C-8K is in a league of its own with its high specification as standard and peak power at low revs. With anti long idle control as standard you can reduce fuel usage and emissions and save as you roll.



– Double travel levels

– LED work and road lights

– 500 hour service intervals

  • RATED POWER
    36.5 kW
  • OPERATING WEIGHT
    4,500 kg
  • DRUM WIDTH
    1,380 mm
Benefits & Features

PERFORMANCE

Where efficiency and compaction performance are needed the STR50C-8K has it covered.



+ Heavyweight performance with large diameter drums

+ Stage V, Kubota engine with anti-long idle control

+ Max power at low revs for improved efficiency

+ Poclain & Danfoss hydraulic motors and pumps for reliable performance



SAFETY

The STR50C-8K is fully equipped for safe working.



+ Foldable ROPS with multiple pre-cut mounting holes for accessories

+ Excellent visibility all around

+ Lockable battery isolator and emergency stop button

+ Reverse alarm, warning beacon and green seat belt beacon



OPERATOR COMFORT

Ease of use and flexibility make the STR50C-8K a comfortable place to work.



+ Dual operator levers

+ Sliding comfort seat

+ LED working and road lights for maximum productivity in low and/or poor light conditions

+ Clear 7-inch information display for simple and easy to use operation



SERVICE

+ Maintenance free, bolted centre joint

+ 500 hour service intervals



SECURITY

+ PIN code enabled ignition



WARRANTY

+ 5 year / 3000 hour warranty as standard for complete peace of mind (terms and conditions)

Specifications
ENGINE
Model Kubota D2607
Rated power 36.5 kW
Emission EU Stage V / EPA Tier 4
Storage battery (V x Ah) 12 x 60

LOAD
Average static linear load  1,630 kg/m

CAPACITIES
Water tank 310 l
Fuel tank 68 l
Hydraulic oil tank 40 l

OPERATING WEIGHT 4,500 kg

PERFORMANCE PARAMETERS
Steering angle +32°
Swing angle +8°
Min. turning outside diameter 2,800 mm

COMPACTION
Vibration frequency  55/60 Hz
Nominal amplitude 0.5 mm
Exciting force  47/68 kN
Travel speed 0-12 km/h
Gradeability (vibrate) 30%
Gradeability (not vibrate) 40%

DIMENSIONS
Length 2,900 mm
Width 1,484 mm
Wheelbase 2,000 mm
Height  2,700 mm
Diameter of vibratory drum 900 mm
Width of vibratory drum 1,380 mm
Thickness of drum 18 mm
Ground clearance (minimum) 350 mm
