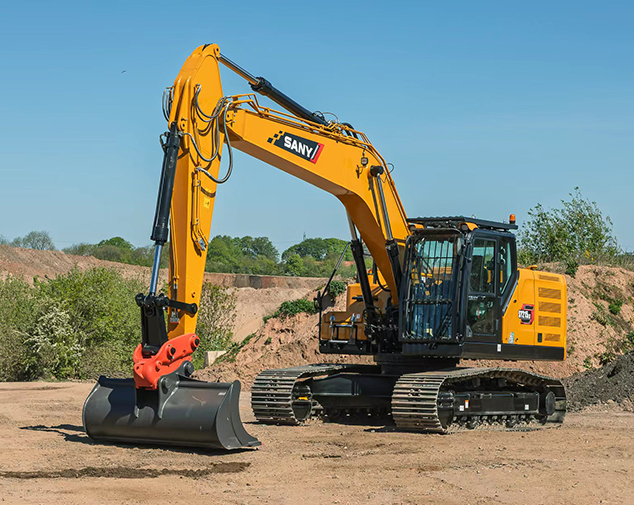

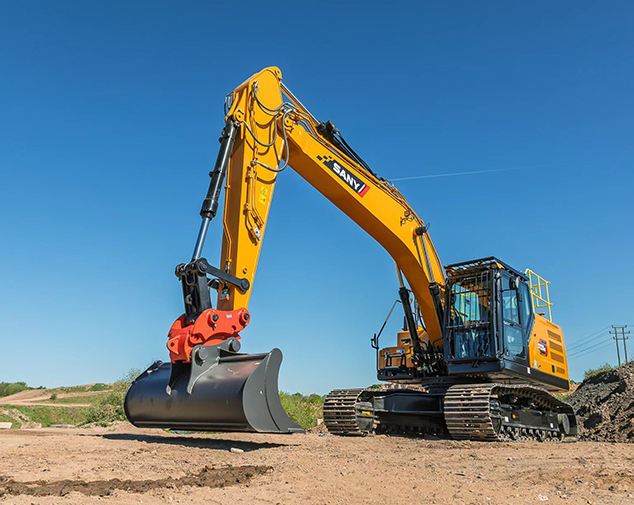

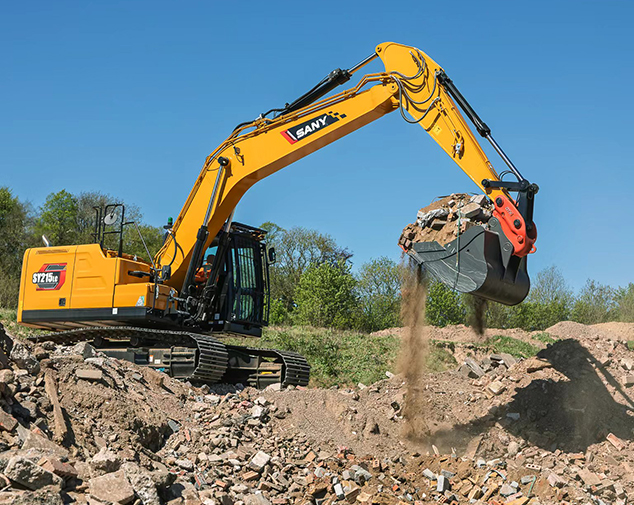

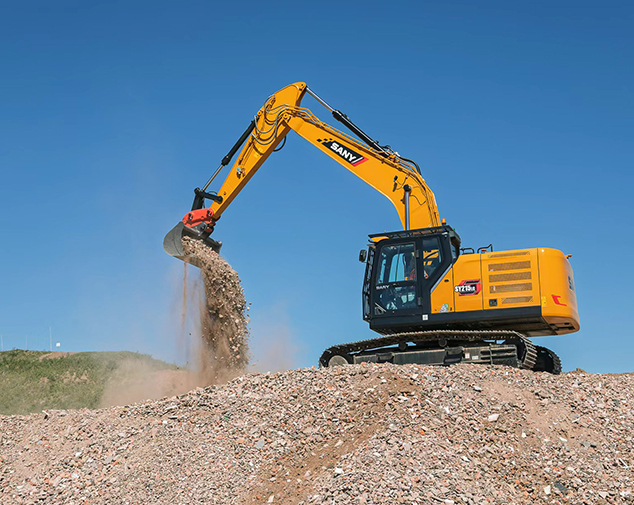

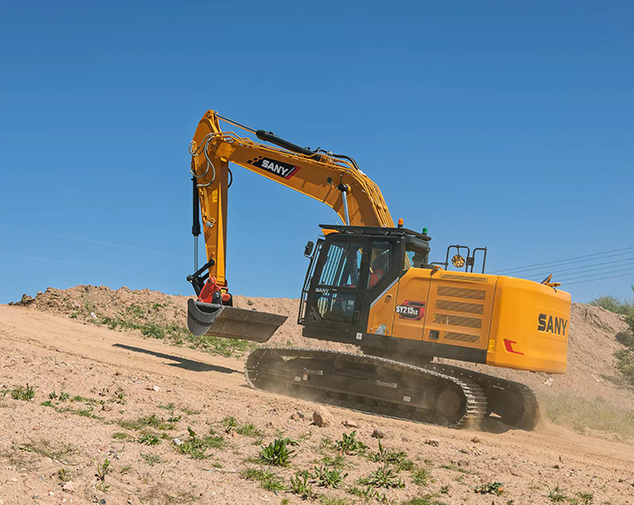

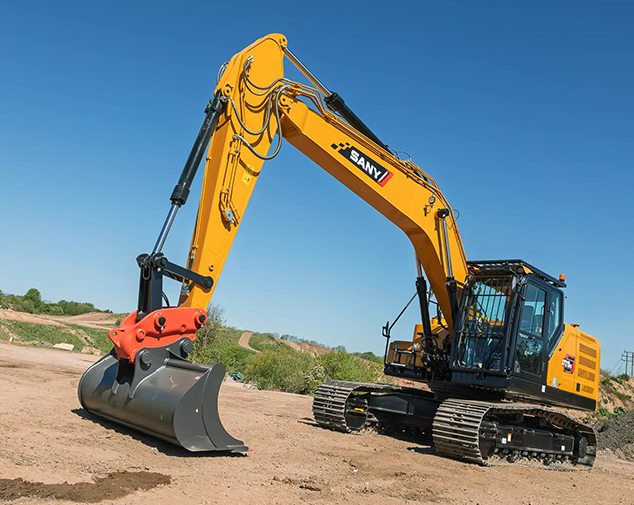

SY215C & SY215C-XD
PRECISE POWER

INDUSTRY LEADING 5-YEAR WARRANTY

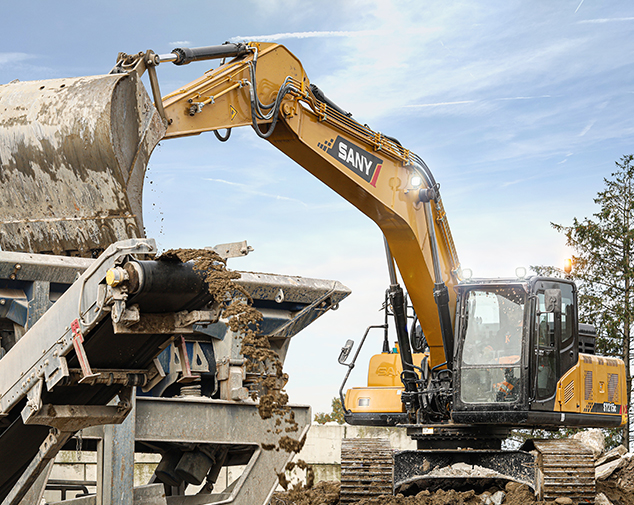

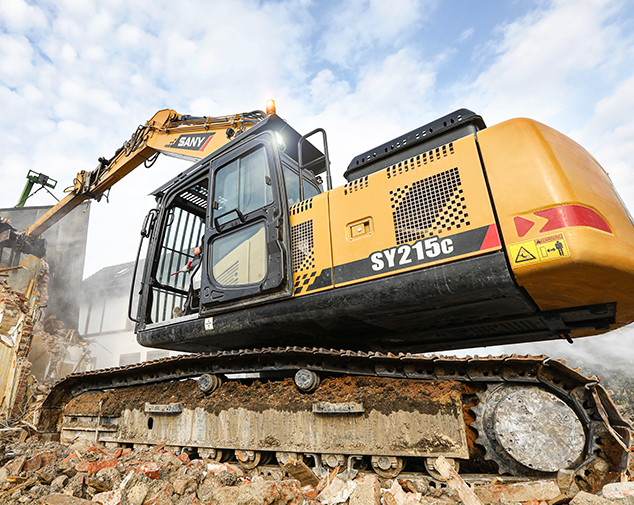

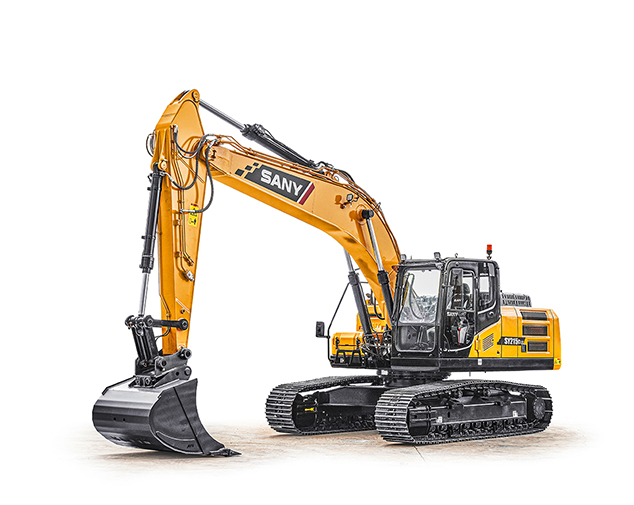

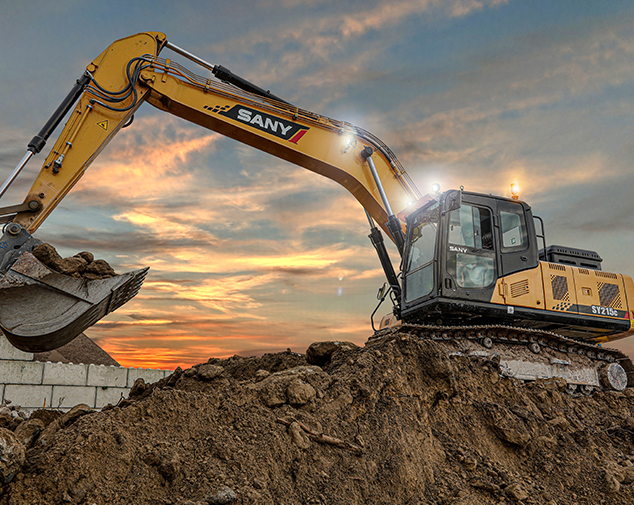

With the SANY SY215C crawler excavator, you get more done. This machine is a real all-rounder and a specialist in every discipline, from quick loading to precise digging and powerful demolition work. What sets it apart is its ability to control its tremendous power with great precision – for maximum productivity and therefore a fast return on investment.



– Stage V CUMMINS engine and finely tuned Kawasaki hydraulic system
– Extremely powerful and offers outstanding driver comfort
– 5 year warranty for complete peace of mind



A demolition specification option (SY215C-XD) is also available. See ‘Specification’ below.

  • RATED POWER
    129 kW / 2200 rpm
  • OPERATING WEIGHT
    24,000 kg
  • DIG DEPTH
    6,450 mm
Benefits & Features

PERFORMANCE

With the SANY SY215C crawler excavator you can expect the ultimate in performance, versatility on site and enhanced efficiency thanks to the smart hydraulic control system.



+ Heavy-duty undercarriage and solid boom provide an exemplary level of stability

+ Stage V CUMMINS engine and smart hydraulic control system to maximise on fuel economy

+ Hammer, bi-directional and rotate pipework with proportional controls enabling maximum versatility whatever the application

+ 100% steel bodywork for maximum protection and reduced cost of ownership

+ Optional long reach boom available



SAFETY

The combination of safety features for the SY215C provides a safe working environment for both the operator and bystanders.



+ ROPS/FOPS certified cab for safe operation

+ Rear and side view camera provide optimal visibility for increased on site safety

+ Travel alarm, green seat belt and rotating warning beacon to increase visibility, attract attention and ensure safety

+ LED work lights for maximum visibility in low light conditions



OPERATOR COMFORT

The SY215C has been designed for your operators comfort and ease of use.



+ Ergonomic and fully adjustable, heated operator’s seat

+ Clear instrumentation and large high resolution colour display

+ Adjustable ventilation, heating and automatic climate control system

+ Integrated cooling box and large amount of storage space

+ Radio and speaker



SERVICE

+ Easy access to all maintenance points

+ Low maintenance requirements and longer service intervals

+ Ergonomic handrails allow safe access to the maintenance platform



SECURITY

+ Registered and protected with the CESAR Datatag Scheme (the premier initiative against equipment theft) and CESAR ECV for quick and easy verification of emissions category



WARRANTY

+ 5-year/5000 hour warranty as standard for complete peace of mind (Terms and Conditions apply)







“We were having to work our old machine flat out to keep up with the plant most days. This is something we don’t have to do with the SANY.

It’s not missed a beat since it arrived”

– Lee Jacks, Midlands Landfil

Specifications
DIMENSIONS
Transport length 9,635 mm
Transport width 3,080 mm
Transport height 3,090 mm
Upper structure carriage width 2,753 mm
Height over cabin/ROPS 2,960 mm
Height of boom – transport 3,370 mm
Overall length of crawler 4,450 mm
Track gauge 2,380 mm
Track height 923 mm
Track pads width Standard 700mm. Optional 600mm / 800mm
Minimum ground clearance 468 mm
Counterweight clearance 1,090 mm
Engine cover height 2,630 mm
Tail swing radius 2,950 mm
Centre distance of tumblers 2,380 mm
Ground pressure 50 KPa

WEIGHT
Operating weight 24,000 kg

ENGINE
Manufacturer Cummins
Model Cummins QSB 6.7 – 6 cylinder
Rated power 129 kW
Max. torque 1472 Nm
Displacement 6.7 l
Exhaust emissions Stage V
Batteries 24 v

HYDRAULIC SYSTEM
Max. Oil flow 2x 241 l/min

RELIEF VALVE SETTING
Implement circuit 34.3MPa
Power boost 37.3 MPa
Swing circuit 27.5 MPa
Travel circuit 34.3 MPa
Pilot pressure 3.9 MPa

SERVICE REFILL CAPACITIES
Fuel tank 370 l
Engine coolant 27.6 l
Engine oil 27 l
Drive (per side) 5.5 l
Hydraulic oil tank 200 l
AdBlue 45 l

PERFORMANCE
Swing speed 11 rpm
Travel speed (Low/High) 3.3/5.4 km/h
Max. travel force 191 kN
Gradeability 70%*(35°)
Bucket digging force ISO 143 kN
Arm digging force ISO 115 kN
Boom length 5,700 mm
Arm length 2,925 mm
Bottom rollers 9
Top rollers 2
Ground pressure 50 KPa

WORKING RANGE
Max. digging reach 9,745 mm
Max. digging depth 6,450 mm
Max. digging Height 9,470 mm
Max. dumping height 6,735 mm

DEMOLITION SPECIFICATION (SY215C-XD only)
Heavy duty belly plates Standard equipment
Bucket ram guard Standard equipment
Stick ram guard Standard equipment
Boom hoist guards Standard equipment
Bolt on side impact protection (3 piece) Standard equipment
8 pre-settings for hydraulic attachments Standard equipment
FOG guard bolt on cab protection (Level 2) Standard equipment
