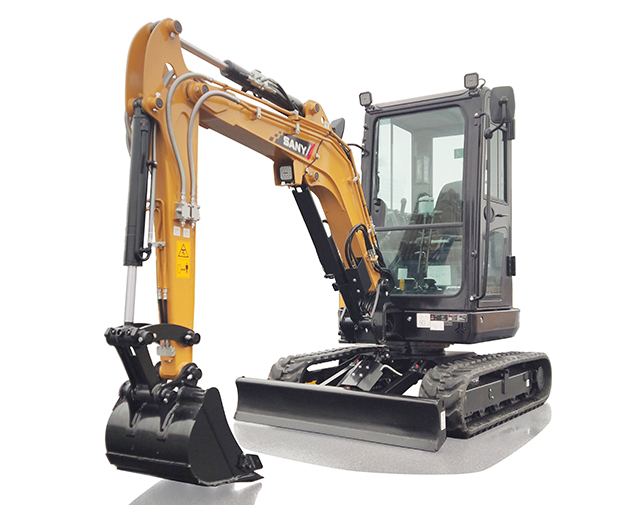

SY26C
A COMPACT COMBINATION OF PERFORMANCE AND FUNCTIONALITY

INDUSTRY LEADING 5-YEAR WARRANTY

The SY26C mini excavator operates with a reduced tail swing offering that perfect combination of compact size and powerful performance. The ideal solution for construction, landscaping, agriculture and small jobsites, it allows you to work and load in areas where space might be limited.



– Short tail swing mini excavator
– Easily towable with secure tie down points for safe transportation
– 5 year warranty for complete peace of mind

  • RATED POWER
    14.6 kW / 2,400 rpm
  • OPERATING WEIGHT
    2,775 kg
  • DIG DEPTH
    2,810 mm
Benefits & Features

PERFORMANCE

The SY26C is in its element whenever it can demonstrate its speed and power.



+ Short tail swing mini excavator for maximum stability

+ Light weight and compact dimensions for easy transportation and manoeuvrability on site

+ Stage V YANMAR engine and efficient, load sensing hydraulics to maximise on fuel economy

+ 100% steel bodywork for maximum protection and reduced cost of ownership

+ Hammer, bi-directional and rotate pipework with proportional controls enabling maximum versatility whatever the application



SAFETY

The SY26C is designed to ensure maximum safety for the operator and on the job site.



+ ROPS/FOPS certified cab for safe operation

+ Optimal visibility for increased on site safety

+ Battery disconnect switch

+ Travel alarm and rotating warning beacon to increase visibility, attract attention and ensure safety



OPERATOR COMFORT

With a next generation cab, operators can look forward to maximum comfort and easier, fatigue-free operation.



+ Responsive and precise controls

+ Ergonomic and comfortable air suspension operator’s seat

+ Clear instrumentation and large high resolution colour display

+ Quiet, low vibration engine so noise levels are kept to a minimum

+ LED work lights for maximum visibility in low light conditions



SERVICE

+ Easy access to all maintenance points



SECURITY

+ Registered and protected with the CESAR Datatag Scheme (the premier initiative against equipment theft) and CESAR ECV for quick and easy verification of emissions category



WARRANTY

+ 5-year/5000 hour warranty as standard for complete peace of mind (Terms and Conditions apply)



Specifications
DIMENSIONS
Transport length 4,160 mm
Transport width 1,550 mm
Transport height 2,410 mm
Upper structure width 1,375 mm
Blade height 300 mm
Track width (standard shoe) 300 mm
Track gauge 1,250 mm
Ground clearance (minimum) 290 mm
Tail swing radius 915 mm
Track length 2,005 mm
Boom length 2,100 mm
Arm length 1,300 mm

WORKING RANGE
Maximum digging height 4,405 mm
Maximum dumping height 3,130 mm
Maximum digging depth 2,810 mm
Maximum vertical wall digging depth 2,210 mm
Maximum reach at ground level 4,710 mm
Minimum swing radius 1,985 mm

ENGINE
Model 3TNV80F
Rated power 14.6 kW
Displacement 1,267 l

HYDRAULIC SYSTEM
Main pumps 1 adjustable axial piston pump
Operating flow (maximum) 78.0 L/min
Travel drive 2 adjustable axial piston pumps

SERVICE REFILL CAPACITIES
Fuel tank capacity 34 l
Hydraulic tank  capacity 30.0 l
Engine oil capacity 3.4 l
Cooling system capacity 4.1 l
