SY305C
MOVE MORE WITH LESS EFFORT

INDUSTRY LEADING 5-YEAR WARRANTY

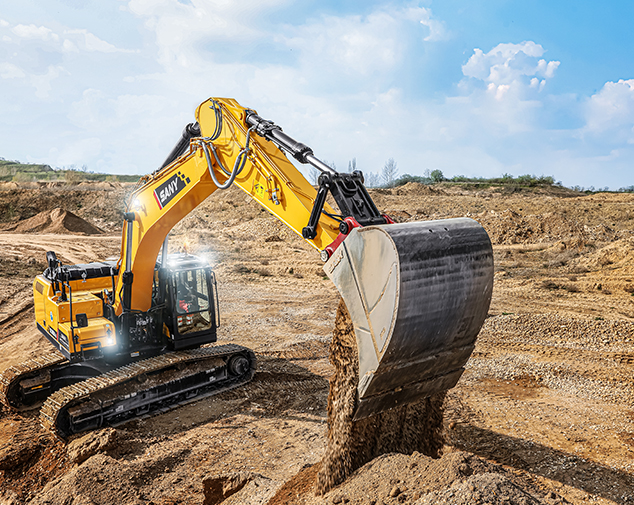

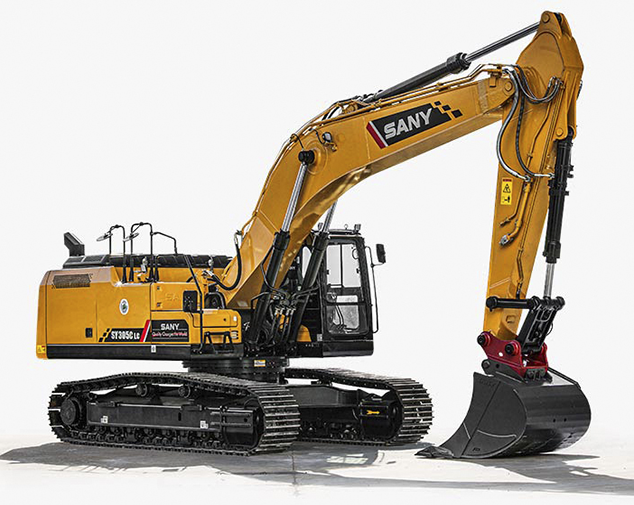

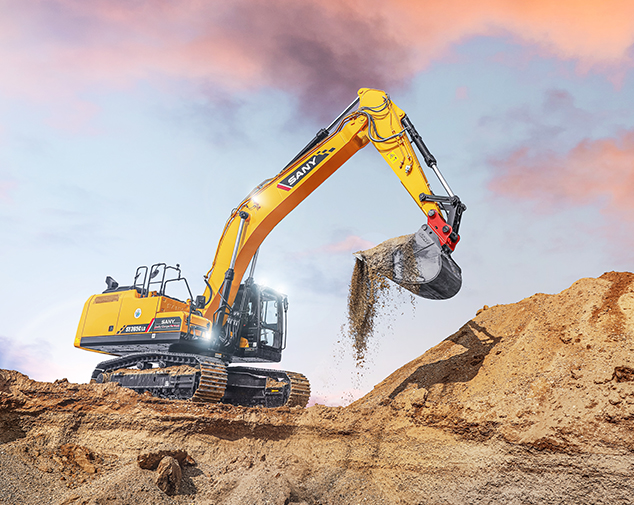

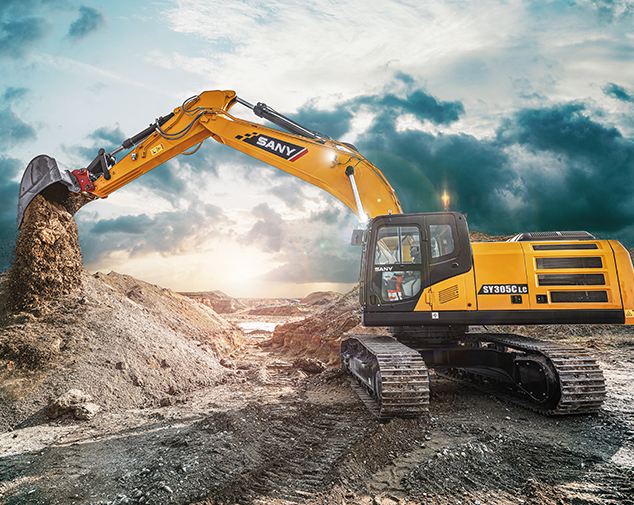

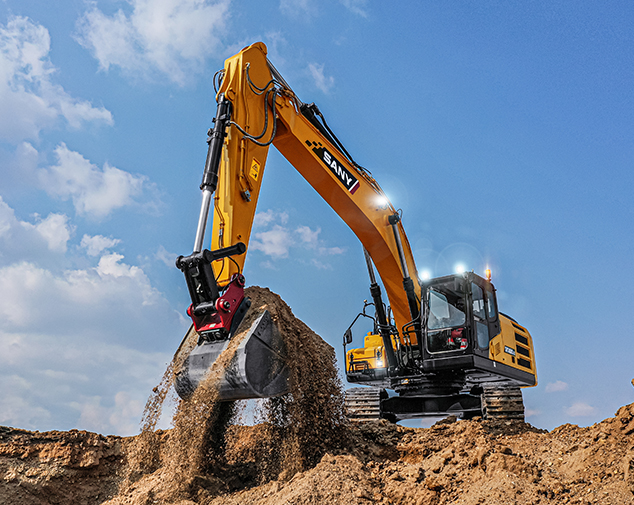

The SANY SY305C works powerfully wherever maximum performance is required for excavation work and in civil engineering. The machine‘s high-quality technology and robust components form the basis for reliable and quick operation.



– Powerful Stage V CUMMINS engine and efficient Kawasaki hydraulic system
– Comfortable operators cab with optimal visibility
– 5 year warranty for complete peace of mind

  • RATED POWER
    209 kW / 2100 rpm
  • OPERATING WEIGHT
    32,265 kg
  • DIG DEPTH
    6,815 mm
Benefits & Features

PERFORMANCE

With its extensive equipment included as standard, the SY305C offers an impressive price-performance ratio and remarkable productivity.



+ Heavy-duty undercarriage and solid boom provide an exemplary level of stability

+ Stage V CUMMINS engine and smart hydraulic control system to maximise on fuel economy

+ 100% steel bodywork for maximum protection and reduced cost of ownership

+ Hammer, bi-directional and rotate pipework with proportional controls enabling maximum versatility whatever the application

+ Optional long reach boom available



SAFETY

The SY305C is fully equipped for precise, safe working on the job site.



+ ROPS/FOPS certified cab for safe operation

+ Rear and side view camera for panoramic visibility

+ Travel alarm, green seat belt and rotating warning beacon to increase visibility, attract attention and ensure safety

+ LED work lights for maximum visibility in low light conditions



OPERATOR COMFORT

Operators of the SY305C can look forward to maximum comfort and easy, intuitive operation.



+ Ergonomic and fully adjustable, heated operator’s seat

+ Clear instrumentation and large high resolution colour display

+ Adjustable ventilation, heating and automatic climate control system

+ Integrated cooling box and large amount of storage space

+ Radio, speaker and USB port



SERVICE

+ Easy access to all maintenance points

+ Low maintenance requirements and longer service intervals

+ Ergonomic handrails and anti-slip tread surfaces allow safe access to the maintenance platform



SECURITY

+ Registered and protected with the CESAR Datatag Scheme (the premier initiative against equipment theft) and CESAR ECV for quick and easy verification of emissions category



WARRANTY

+ 5-year/5000 hour warranty as standard for complete peace of mind (Terms and Conditions apply)

Specifications
DIMENSIONS
Transport length 10,667 mm
Transport width 3,190 mm
Transport height 3,470 mm
Upper structure carriage(width) 2,986 mm
Height over cabin/ROPS 3,280 mm
Height of boom – transport 3,470 mm
Overall length of crawler 4,840 mm
Track gauge 2,590 mm
Track height 1,025 mm
Track pads width Standard 700mm. Optional 600/800 mm
Minimum ground clearance 550 mm
Tail swing radius 2,590 mm
Centre distance of tumblers 3,916 mm
Ground pressure 60 Kp
Boom length 6,150 mm
Arm length 3,200 mm
Bottom rollers 8
Top rollers 2

WEIGHT
Operating weight 32,265 kg

ENGINE
Manufacturer Cummins
Model QSL9-C280 6 Cylinder
Rated power 209 kW
Max. torque 1472 Nm
Displacement 6.7 l
Exhaust emissions Stage V
Batteries 24 v

HYDRAULIC SYSTEM
Max. oil flow l/min 2 x 280 l/min

RELIEF VALVE SETTING
Implement circuit 34.3 MPa
Power boost 37.3 MPa
Swing circuit 27.5 MPa
Travel circuit 34.3 MPa
Pilot pressure 3.9 MPa

SERVICE REFILL CAPACITIES
Fuel tank 430 l
Engine coolant 36 l
Engine oil 21 l
Drive (per side) 10.5 l
Hydraulic oil tank 300 l
AdBlue 85 l

PERFORMANCE
Swing speed 9 rpm
Travel speed (Low/High) 3.4/5.2 km/h
Max. travel force 245 kN
Gradeability 70%*(35°)
Bucket digging force ISO 204 kN
Arm digging force ISO 153 kN

WORKING RANGE
Max. digging reach 10,870 mm
Max. digging depth 6,815 mm
Max. digging height 10,495 mm
Max. dumping height 7,359 mm
Overall height over arm by Min .swing radius 8,405 mm
Min. swing radius 4,000 mm
