EFFICIENCY IN THE SMALLEST OF SPACES

INDUSTRY LEADING 5-YEAR WARRANTY

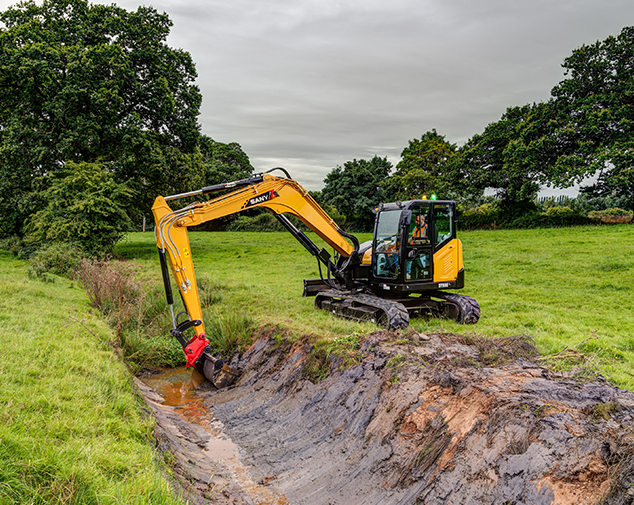

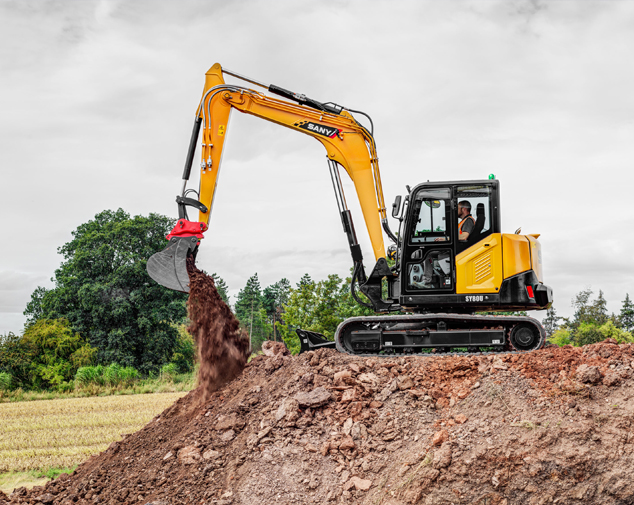

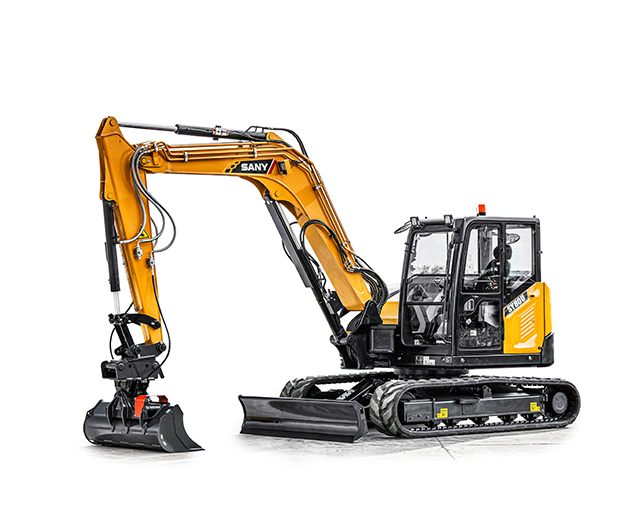

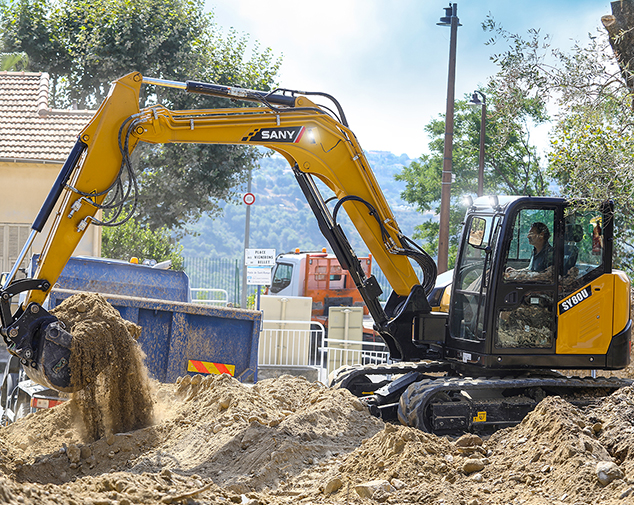

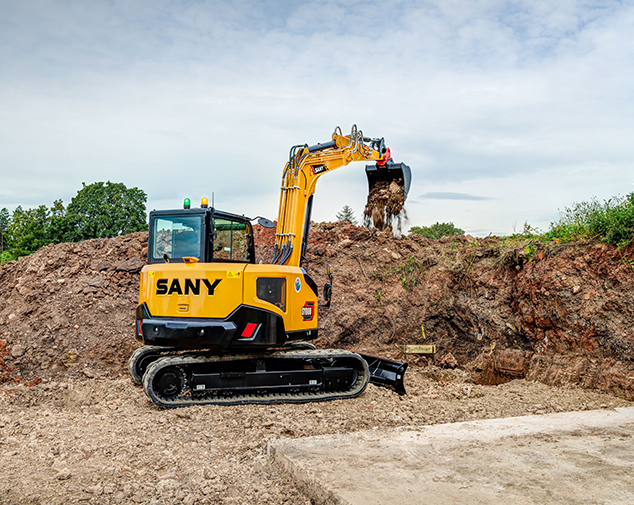

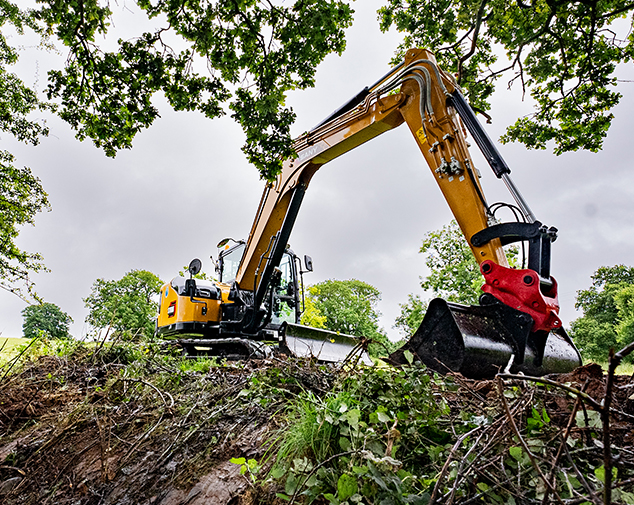

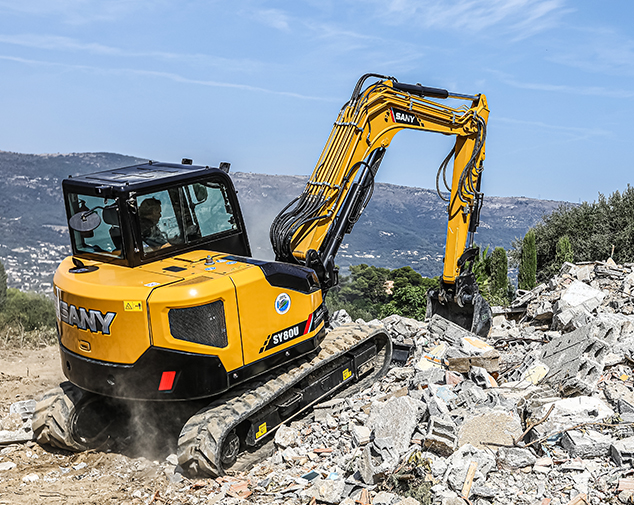

Its compact dimensions and minimal slewing radius make the SY80U short-tail-swing excavator the smallest SANY compact excavator there is. It’s in its element anywhere where precise power is needed in confined spaces and on construction sites with impaired visibility. With an efficient slewing radius of no more than 1,480mm, it’s an ideal choice for both construction and landscaping works.



– Extremely compact short-tail-swing excavator with Stage V YANMAR engine
– Excellent panoramic visibility and comfortable operators cab
– 5 year warranty for complete peace of mind

  • RATED POWER
    53.7 kW / 2,100 rpm
  • OPERATING WEIGHT
    9,580 kg
  • DIG DEPTH
    4,535 mm
Find a Dealer Leave a message Download
Benefits & Features

PERFORMANCE

The SY80U short-tail-swing excavator is tailored to the requirements of tough everyday use on the construction site. Aside from its compact design, it impresses with its first-class performance, its low fuel consumption and its outstanding user comfort.



+ Compact design and short-tail-swing radius allows for easy manoeuvrability and increased versatility

+ Stage V YANMAR engine and efficient, load sensing hydraulics to maximise on fuel economy

+ 100% steel bodywork for maximum protection and reduced cost of ownership

+ Hammer, bi-directional and rotate pipework with proportional controls enabling maximum versatility whatever the application

+ Optional 260kg bolt on counterweight

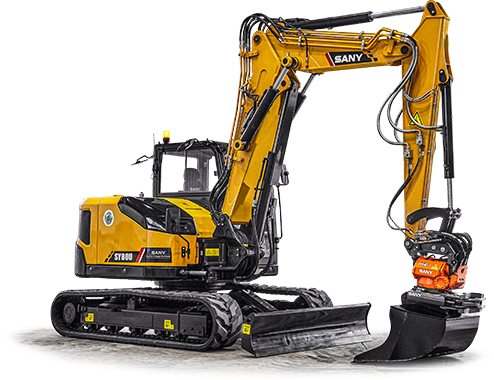

+ Optional two-piece boom available with 400kg bolt on counterweight



SAFETY

Reliably stable, the SY80U guarantees maximum safety in all working conditions.



+ ROPS/FOPS certified cab for safe operation

+ Optimal visibility for increased on site safety

+ Battery disconnect switch

+ Travel alarm and rotating warning beacon to increase visibility, attract attention and ensure safety

+ Rear camera fitted for increased site safety



OPERATOR COMFORT

The SY80U offers a new generation cab with the highest levels of comfort to ensure that the operator can achieve maximum productivity while working.



+ Joystick with 2 proportional control circuits allows for safe and precise control

+ Upgraded ergonomic and comfortable air suspension operator’s seat

+ An intuitive 7” touch screen display that has been designed with high performance and ease of use in mind

+ Quiet, low vibration engine so noise levels are kept to a minimum

+ Gear changing on the blade lever offers great convenience

+ LED work lights for maximum visibility in low light conditions



SERVICE

+ Easy access to all maintenance points

+ Low maintenance requirements and longer service intervals



SECURITY

+ Registered and protected with the CESAR Datatag Scheme (the premier initiative against equipment theft) and CESAR ECV for quick and easy verification of emissions category



WARRANTY

+ 5-year/5000 hour warranty as standard for complete peace of mind (Terms and Conditions apply)

Specifications
DIMENSIONS
Transport length 7,010 mm
Transport width 2,220 mm
Upper structure carriage 2,150 mm
Height over cabin/ROPS 2,550 mm
Height of Boom – transport 2,220 mm
Overall length of crawler 2,915 mm
Tail length 1,480 mm
Track gauge 1,750 mm
Undercarriage width (blade) 2,200 mm
Horizontal distance to blade 2,080 mm
Blade height 450 mm
Track height 660 mm
Engine cover height 1,880 mm
Tail swing radius 1,480 mm
Center distance of tumblers 2,315 mm

WORKING RANGE
Max. digging reach 7,290 mm
Max. digging depth 4,535 mm
Max. digging height 7,315 mm
Max. dumping height 5,430 mm
Max. vertical digging depth 2,490 mm
Max. clearance when blade up 480 mm
Max. depth of blade down 325 mm

WEIGHT
Operating weight 9,580 kg

ENGINE
Model 4TNV98CT-VSY
Rated power 53.7 kW / 2,100 rpm
Max. torque 290 Nm / 1,350 rpm
Displacement 3,318 ccm

HYDRAULIC SYSTEM
Main pump 1 Adjustable axial piston pump
Maximum oil flow 1 x 193.2 l/min
Travel drive Variable displacement axial piston motor
Rotary gear Axial piston motor

RELIEF VALVE SETTING
Boom circuit 280 bar
Slewing circuit 215 bar
Drive circuit 280 bar
Pilot Control Circuit 35 bar

PERFORMANCE
Swing speed 11 rpm
Max. ground speed 4.5 km/h faster, 2.5 km/h slower
Max. traction 70 kN
Climbing ability 35°
Max. bucket digging force 59 kN
Max. arm digging force 44.5 kN

SERVICE REFILL CAPACITIES
Fuel tank 100 l
Engine coolant 12 l
Engine oil 10.2 l
Travel drive (each side) 1.2 l
Hydraulic tank 120 l
