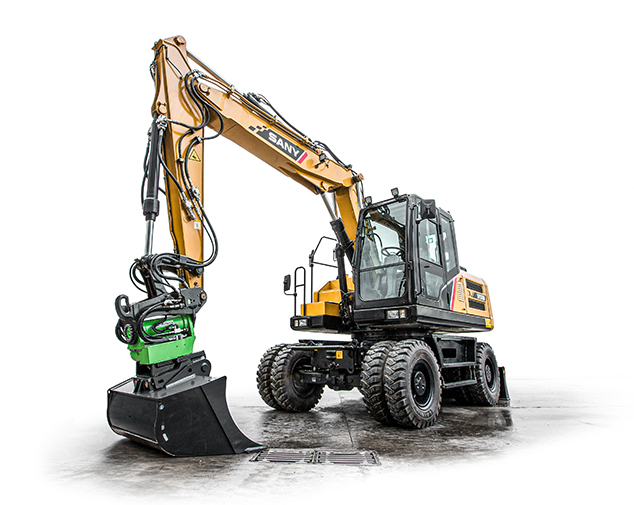

SY155W
READY FOR ANY TERRAIN

INDUSTRY LEADING 5-YEAR WARRANTY

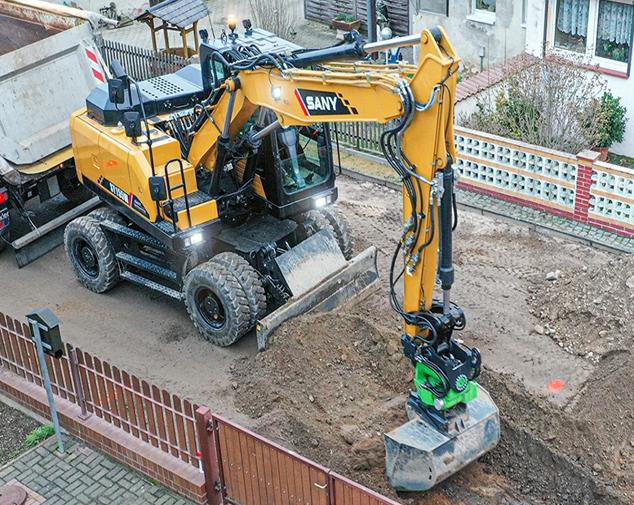

The SY155W demonstrates how strong performance can take to the road reliably and safely. When it comes to mobility, the SANY SY155W is unrivalled, both on the construction site and over short distances. This compact wheeled excavator is an all-rounder boasting exemplary productivity and flexibility, working not only with strength but also precision.



– Stage V DEUTZ engine and efficient load sending hydraulic system
– Comfortable ROPS/FOPS certified operators cab
– 5 year warranty for complete peace of mind

  • RATED POWER
    115 kW / 2,000 rpm
  • OPERATING WEIGHT
    16,200 kg
  • DIG DEPTH
    5,400 mm
Benefits & Features

PERFORMANCE

The efficiency of the SY155W means outstanding performance with low energy consumption.

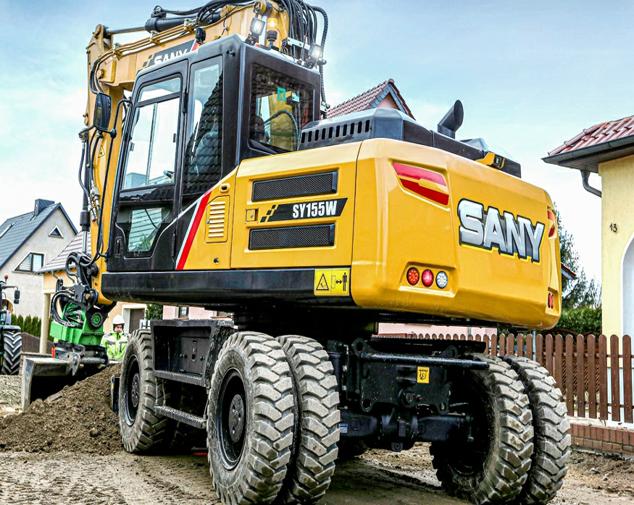

+ Powerful short-tail-swing machine with short overhang radius enables working in tight spaces without any reduction in performance

+ Stage V DEUTZ engine and efficient, load sensing hydraulics to maximise on fuel economy

+ Hammer, bi-directional and rotate pipework with proportional controls enabling maximum versatility whatever the application

+ 100% steel bodywork for maximum protection and reduced cost of ownership



SAFETY

Safety features of the SY155W ensure maximum safety to those in and around the machine.



+ ROPS/FOPS certified cab for safe operation

+ Rear view camera provides optimal visibility for increased on site safety

+ Battery disconnect switch

+ Travel alarm and rotating warning beacon to increase visibility, attract attention and ensure safety

+ Front dozer blade and rear stabilizers provide added stability in a range of applications



OPERATOR COMFORT

Welcome to the comfort zone of the SY155W!



+ Heated, air suspension operator’s seat

+ Clear instrumentation and large high resolution colour display

+ Quiet, low vibration engine so noise levels are kept to a minimum

+ Adjustable ventilation, heating and automatic climate control system

+ Integrated cooling box and large amount of storage space

+ LED work lights for maximum visibility in low light conditions



SERVICE

+ Easy access to all maintenance points

+ Low maintenance requirements and longer service intervals

+ Ergonomic handrails allow safe access to the maintenance platform



SECURITY

+ Registered and protected with the CESAR Datatag Scheme (the premier initiative against equipment theft) and CESAR ECV for quick and easy verification of emissions category



WARRANTY

+ 5-year/5000 hour warranty as standard for complete peace of mind (Terms and Conditions apply)

Specifications
Dimensions
Overall length 8,200 mm
Overall width 2,550 mm
Overall upperstructure width 2,550 mm
Overall height 3,200 mm
Tail length 2,030 mm
Track gauge 1,944 mm
Undercarriage width (dozer blade) 2,550 mm
Blade height 515 mm
Minimum ground clearance 360 mm
Tail swing radius 2,030 mm
Distance (centre) between crawler wheel and guide wheel 2,600 mm
Boom length 1930 mm + 3100 mm
Bucket arm length 2500 mm
Bucket capacity 0.6 m³

WEIGHT
Operating weight 16,200 kg

WORKING RANGE
Max. horizontal reach on the ground 8,900 mm
Max. excavation depth 5,400 mm
Max. excavation height 9,950 mm
Max. dumping height 7,200 mm
Min. slewing radius 2,195 mm

ENGINE
Model DEUTZ TCD4.1 L4
Rated power 115 kW
Max. torque 609 Nm/1600 rpm
Displacement 4.1 l

HYDRAULIC SYSTEM
Main pumps 1 x variable-piston-pump with
load sensing control
Maximum oil flow 250 l/min
Travel drive Variable displacement axial piston motor
Slewing gear Axial piston motor

RELIEF VALVE SETTINGS
Boom circuit 340 bar
Slewing circuit 255 bar
Drive circuit 360 bar
Pilot control circuit 35 bar

PERFORMANCE
Slewing speed 10.5 rpm
Max. ground speeds High 20 km/h, slow 7 km/h
Max. traction force 84 kN
Climbing ability 35°
ISO bucket breakaway force 87 kN
ISO arm tear-out force 64 kN

SERVICE REFILL CAPACITIES
Fuel tank 233 l
Engine coolant 26 l
Engine oil 11.5 l
Adblue 20 l
Hydraulic oil tank 175 l
